Data sheet
- Brand
- SKF
- Reference
- HA313
- Inside diameter (MM)
- 55.56
- Inside diameter (INCH)
- 2.187"
- Outside diameter (MM)
- 65
- Outside diameter (INCH)
- 2.559"
- Width (MM)
- 50
- Width (INCH)
- 1.969"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 84829900

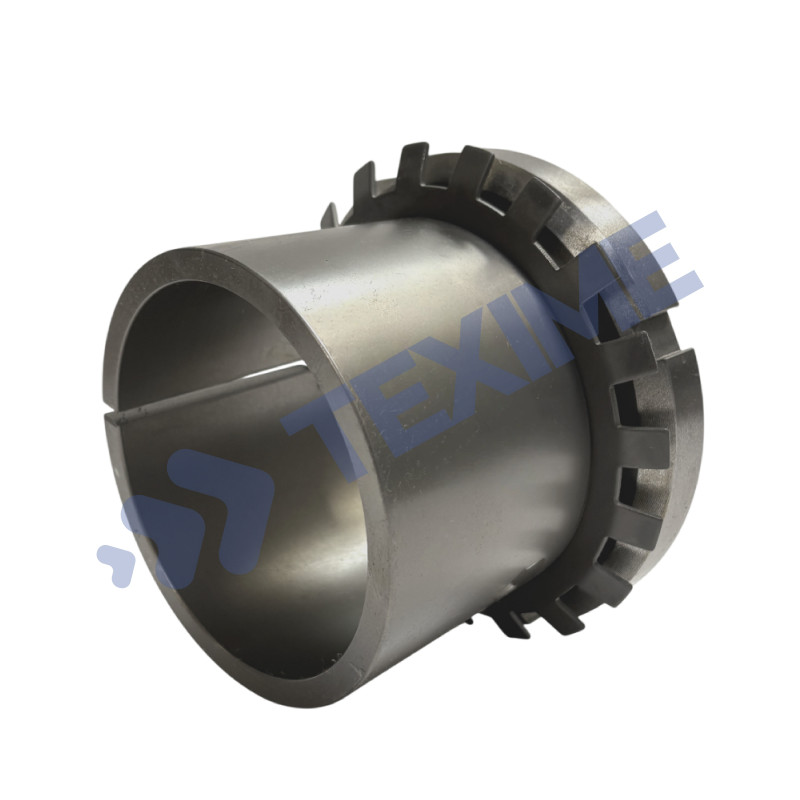

Adapter Sleeves And Accessories HA313
SKF
Adapter Sleeves HA313 are essential accessories for securing mechanical components in a wide range of industrial applications. These H... Adapter Sleeves are designed for reliability. Frequently used to mount tapered-bore bearings on cylindrical shaft seats.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
The adapter sleeve and accessories HA313, the solution to your needs?
What to say about the adapter sleeve HA313 with KM lock nut and MB lock washer, metric dimensions
Adapter sleeves HA313 are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts.
They are usually slit and are supplied complete with a KM lock nut and a MB lock washer.
Here are the important points to note about adapter sleeves HA313
- Easy to install
- Complete with lock nut
- Complete with locking device
