Data sheet
- Brand
- MTK
- Reference
- MB 27
- Inside diameter (MM)
- 160
- Inside diameter (INCH)
- 6.299"
- Outside diameter (MM)
- 135
- Outside diameter (INCH)
- 5.315"
- Width (MM)
- 2
- Width (INCH)
- 0.079"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 84829900
Adapter Sleeves And Accessories MB 27
MTK
Discover the lock washer MB 27, corresponding to the category adapter sleeves and accessories MB. See below for specifications!
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION

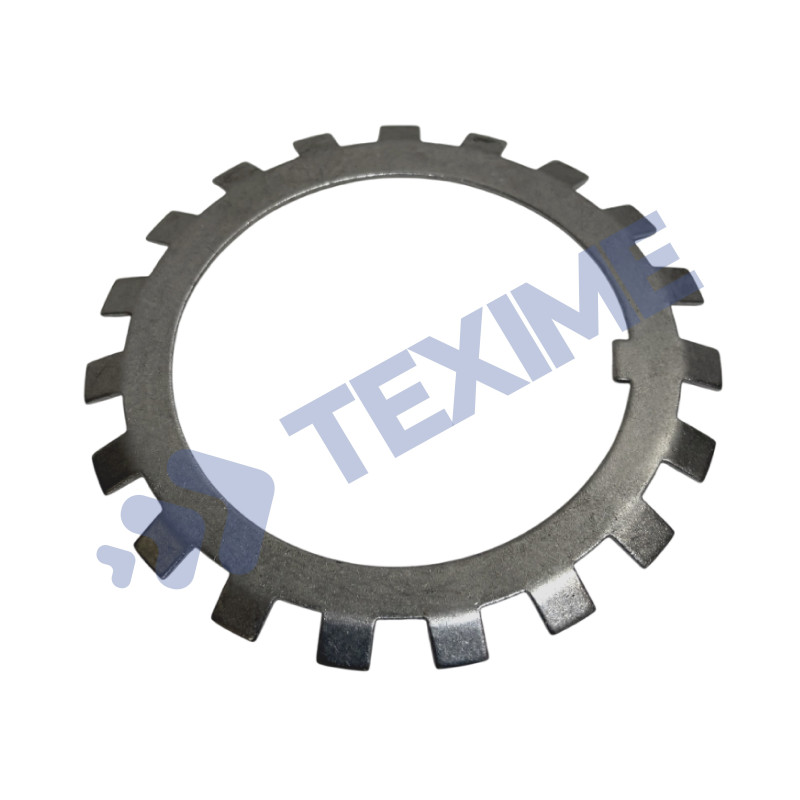

Adapter Sleeves And Accessories MB 27: Lock washer for metric lock nuts
Lock washer MB 27: MB and MBL lock washers are locking devices, used to secure KM, KML and HM .. T lock nuts onto a shaft or adapter sleeve and prevent unintentional loosening. MB .. A is a stronger version of the MB washer.
The lock washers engage a keyway in the shaft or adapter sleeve thread. They lock the nut in position when one of the washer tabs is bent into one of the slots in the outside diameter of the lock nut.
A new lock washer should be used each time the corresponding lock nut is installed.
Points to remember about the MB 27 lock washer:
- Simple, stable and reliable fastening element
- Easy to install and remove
- Used for KM, KML, and HM .. T lock nuts
