Data sheet
- Brand
- FAG
- Reference
- 7220-BTVP
- Inside diameter (MM)
- 100
- Inside diameter (INCH)
- 3.937"
- Outside diameter (MM)
- 180
- Outside diameter (INCH)
- 7.087"
- Width (MM)
- 34
- Width (INCH)
- 1.339"
- Internal clearance
- Normal
- Cage type
- Plastic cage
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84821090

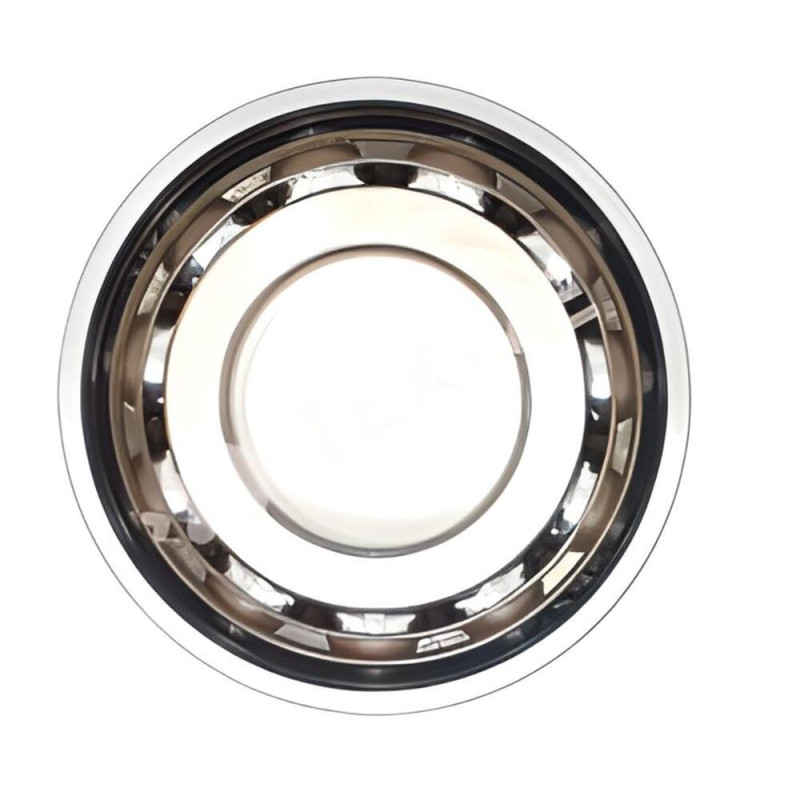

Angular Contact Ball Bearings 7220-BTVP
FAG
The 7220-BTVP single-row angular contact ball bearing is designed for optimum performance in your applications requiring. Find out more about single row angular contact ball bearings and their features below.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Single row angular contact ball bearing 7220-BTVP
These 7220-BTVP single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds.
They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
- High-speed capability
- Accommodate relatively high radial loads and large unilateral axial loads
