Data sheet
- Brand
- INA
- Reference
- KR80PPA
- Inside diameter (MM)
- 30
- Inside diameter (INCH)
- 1.181"
- Outside diameter (MM)
- 80
- Outside diameter (INCH)
- 3.150"
- Width (MM)
- 100
- Width (INCH)
- 3.937"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 84824000

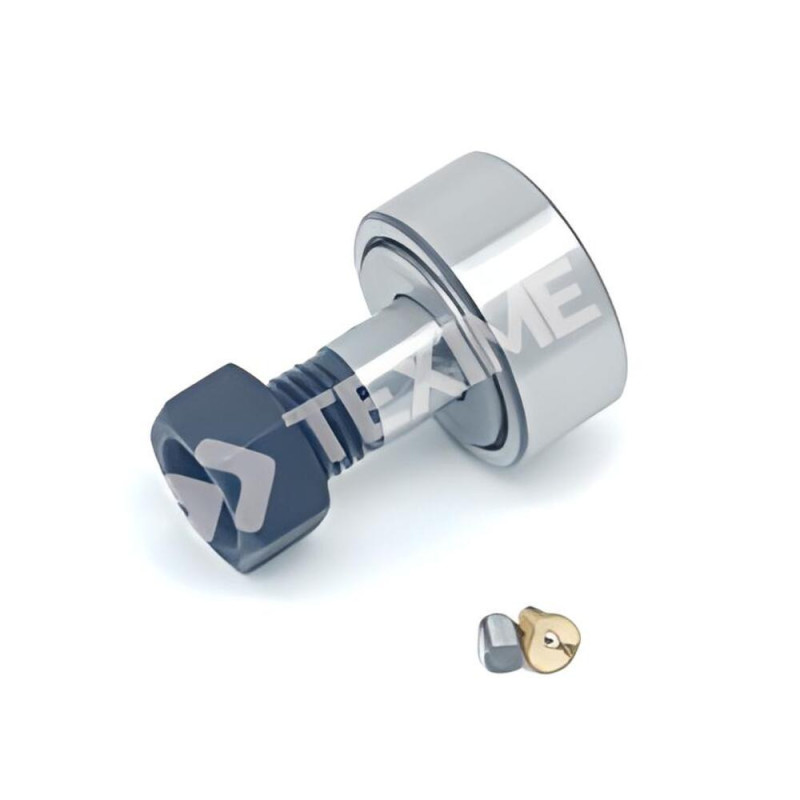

Cam follower with stud KR80PPA
INA
Cam follower with stud KR80PPA are the bearings we offer. Among our many references, discover the Cam follower with stud KR80PPA and its features below.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Cam follower with stud KR80PPA
Cam followers KR80PPA (Cam follower with stud) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring.
They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal.
The bearings can be relubricated via the stud.
Key points to remember about the Cam follower KR80PPA
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
