Data sheet
- Brand
- TIMKEN
- Reference
- JR30X35X30
- Inside diameter (MM)
- 30
- Inside diameter (INCH)
- 1.181"
- Outside diameter (MM)
- 35
- Outside diameter (INCH)
- 1.378"
- Width (MM)
- 30
- Width (INCH)
- 1.181"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84829900

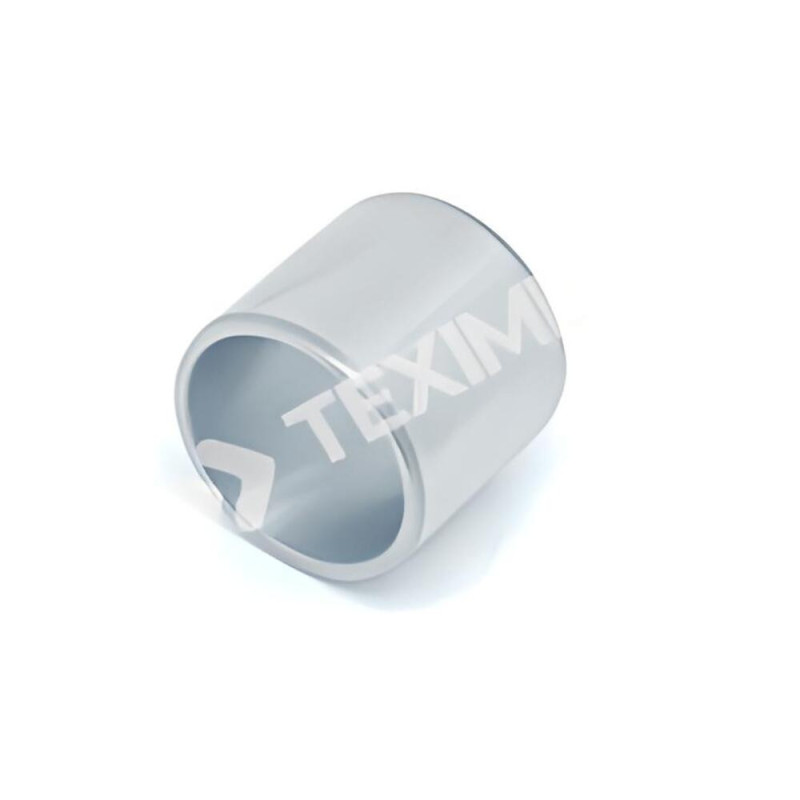

Inner Rings JR30X35X30
TIMKEN
Discover the Inner Ring JR30X35X30, a precision component designed to offer performance and durability in your industrial equipment. Made from high-quality materials, this JR30X35X30 Inner Ring is specially designed to adapt to a variety of applications. With the following dimensions: internal diameter = 30 mm, external diameter = 35 mm and width= 30 mm.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Inner ring JR30X35X30 for needle roller bearings, JR series
Inner ring JR30X35X30: Inner rings for needle roller bearings are available as separate components. They are generally combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground.
JR series inner rings are inner rings for needle roller bearings. They are generally hardened and ground, and feature a precision-machined raceway surface with a chamfer on both sides.
Key points of the inner rings, inner ring JR30X35X30
- Enable full interchangeability of inner rings
- Standard inner rings for needle roller bearings
- Accommodate axial displacement in both directions
- Chamfers facilitate assembly and protect seal lips during mounting
Need inner rings? Other types of bearing? Motors and/or geared motors?
Texime, offers a wide range of bearings, including IR and JR inner rings, as well as electric motors and geared motors.
Discover the Inner Ring JR30X35X30, a precision component designed to offer performance and durability in your industrial equipment. Made from high-quality materials, this JR30X35X30 Inner Ring is specially designed to adapt to a variety of applications. With the following dimensions: internal diameter = 30 mm, external diameter = 35 mm and width= 30 mm.
