Data sheet
- Brand
- INA
- Reference
- IR50X60X20-IS1
- Inside diameter (MM)
- 50
- Inside diameter (INCH)
- 1.969"
- Outside diameter (MM)
- 60
- Outside diameter (INCH)
- 2.362"
- Width (MM)
- 20
- Width (INCH)
- 0.787"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84829900

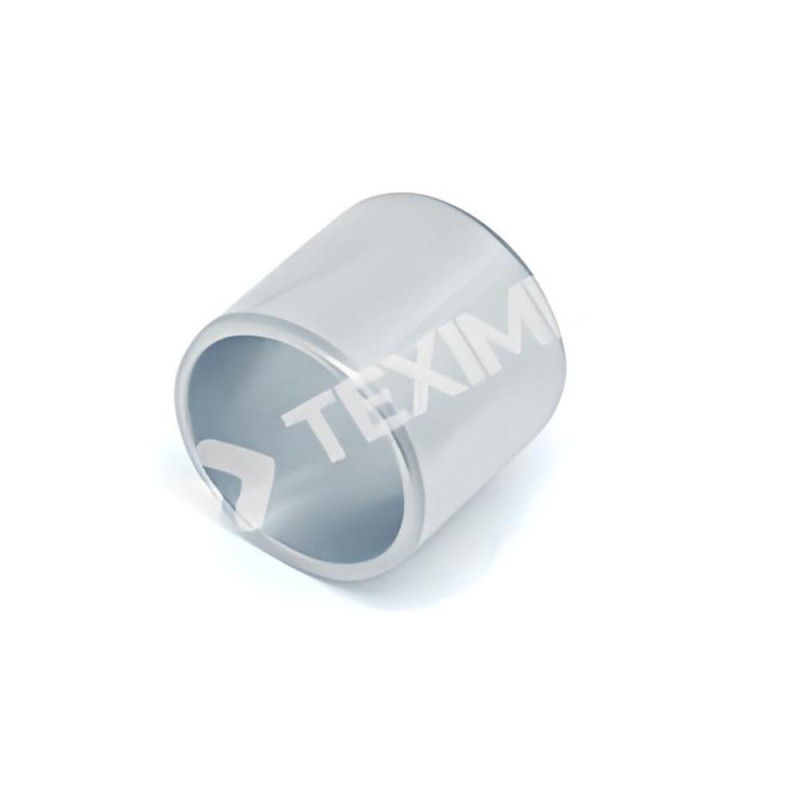

Inner Rings IR50X60X20-IS1
INA
Discover the Inner Ring IR50X60X20-IS1, a precision component designed to offer performance and durability in your industrial equipment. Made from high-quality materials, this IR50X60X20-IS1 Inner Ring is specially designed to adapt to a variety of applications. With the following dimensions: internal diameter = 50 mm, external diameter = 60 mm and width= 20 mm.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Inner ring IR50X60X20-IS1 for needle roller bearings, IR series
Inner ring IR50X60X20-IS1: Inner rings for needle roller bearings are available as separate components. They are generally combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground.
IR series inner rings are inner rings for needle roller bearings. They are generally hardened and ground, and feature a precision-machined raceway surface with a chamfer on both sides.
Key points of the inner rings, inner ring IR50X60X20-IS1
- Enable full interchangeability of inner rings
- Standard inner rings for needle roller bearings
- Accommodate axial displacement in both directions
- Chamfers facilitate assembly and protect seal lips during mounting
