Data sheet
- Brand
- FAG
- Reference
- KM20
- Inside diameter (MM)
- 100
- Inside diameter (INCH)
- 3.937"
- Outside diameter (MM)
- 130
- Outside diameter (INCH)
- 5.118"
- Width (MM)
- 18
- Width (INCH)
- 0.709"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 73181660

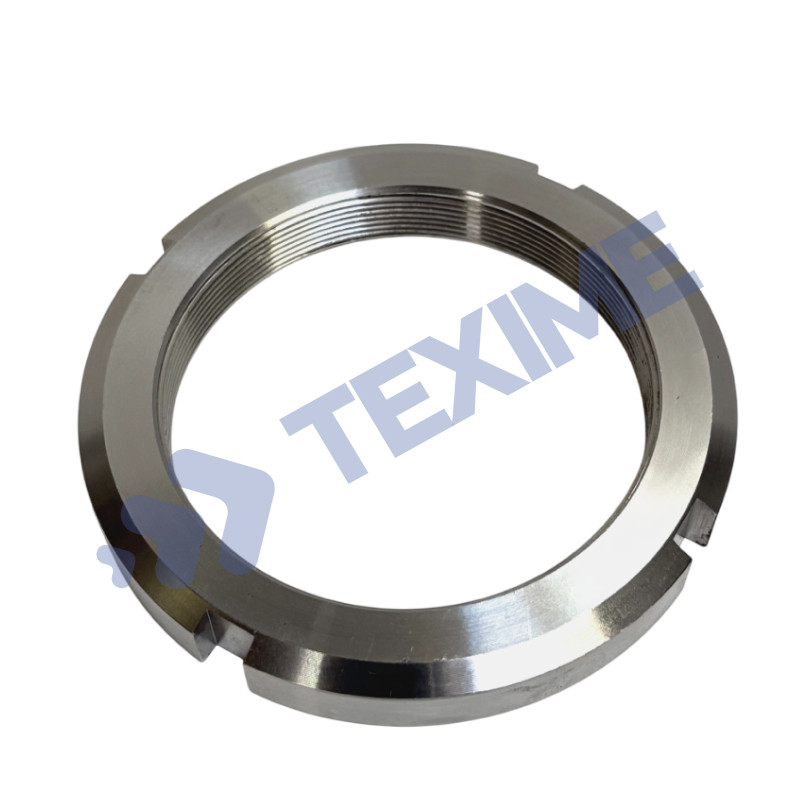

Lock nut KM20
FAG
Is the lock nut KM20 the right one for you? The lock nuts are designed to be reliable, and are generally used for locking bearings on a shaft.
Professionals?
Log in to benefit from your prices
€27.06
Tax included
Description
INDICATIVE DESCRIPTION
The lock nut KM20, your lock nut for your needs
Lock nut with metric thread, for locking by lock washer
Lock nut KM20 : KM and KML lock nuts are used to locate bearings onto a shaft. They have metric threads and four equally spaced slots located around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening.
KM and KML lock nuts can be reused, provided they are not damaged
Important elements of lock nuts KM20
- Simple, stable and reliable fastening element
- Easy to install and remove
- Reusable with a new lock washer
- Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40)
