Data sheet
- Brand
- ELGES
- Reference
- GIHRK35-UK-2RS
- Inside diameter (MM)
- 35
- Inside diameter (INCH)
- 1.378"
- Outside diameter (MM)
- 55
- Outside diameter (INCH)
- 2.165"
- Width (MM)
- 25
- Width (INCH)
- 0.984"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- Cylindrical
- Sealing type
- Rubber seals on both sides
- Customs code
- 84833080

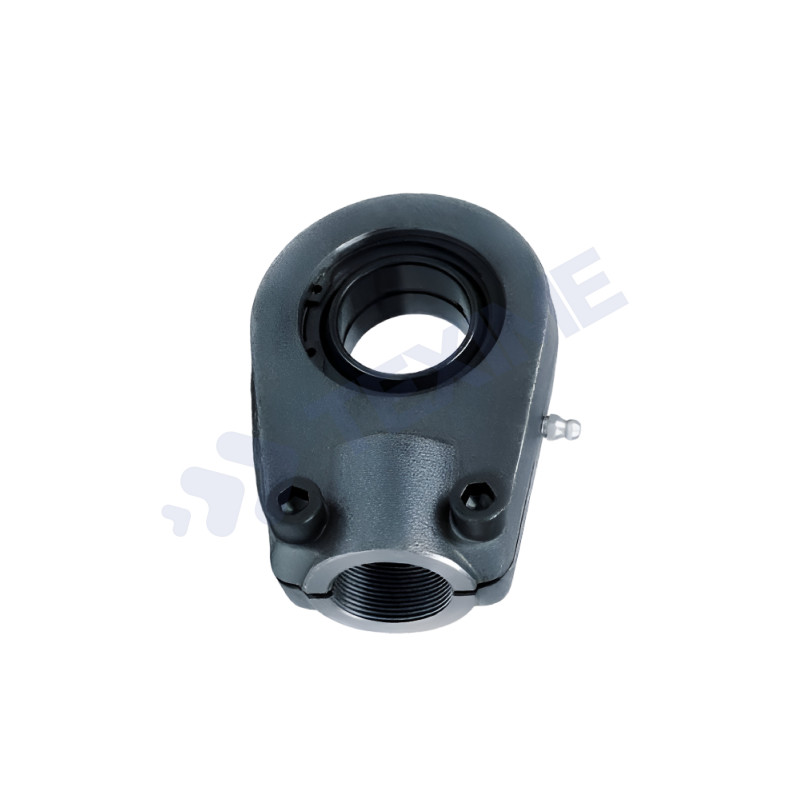

Rod end GIHRK35-UK-2RS
ELGES
The rod end GIHRK35-UK-2RS is a product whose characteristics can be found on the manufacturer's website.
Professionals?
Log in to benefit from your prices
Description
For more information about this GIHRK35-UK-2RS rod end, please refer to the manufacturer's website.
INDICATIVE DESCRIPTION
GIHRK35-UK-2RS Rod End
The GIHRK-UK-2RS reference belongs to the rod end bearing family, consisting of a housing with an integrated shank and a spherical plain bearing.
This spherical plain bearing is generally composed of an inner ring and an outer ring without rolling elements.
Rod ends are typically mounted at the end of hydraulic or pneumatic cylinders.
They can also be used to connect two shafts.
These rod ends are able to compensate for misalignment and can support radial forces in both tension and compression.
Common applications of the GIHRK35-UK-2RS rod end
- Hydraulic and pneumatic cylinders
- Industrial machinery
- Agricultural equipment
- Lifting and handling systems
- Mechanical articulated linkages
Note
The technical information provided above is for indicative purposes only. It has been compiled from various documentation sources and available manufacturer catalogs.
Despite careful verification, some data may vary depending on production batches, product updates, or specific manufacturer specifications.
Therefore, this information should be confirmed before any use or order and cannot be considered contractual.
