Data sheet
- Brand
- FAG
- Reference
- 1304TV
- Inside diameter (MM)
- 20
- Inside diameter (INCH)
- 0.787"
- Outside diameter (MM)
- 52
- Outside diameter (INCH)
- 2.047"
- Width (MM)
- 15
- Width (INCH)
- 0.591"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84821090

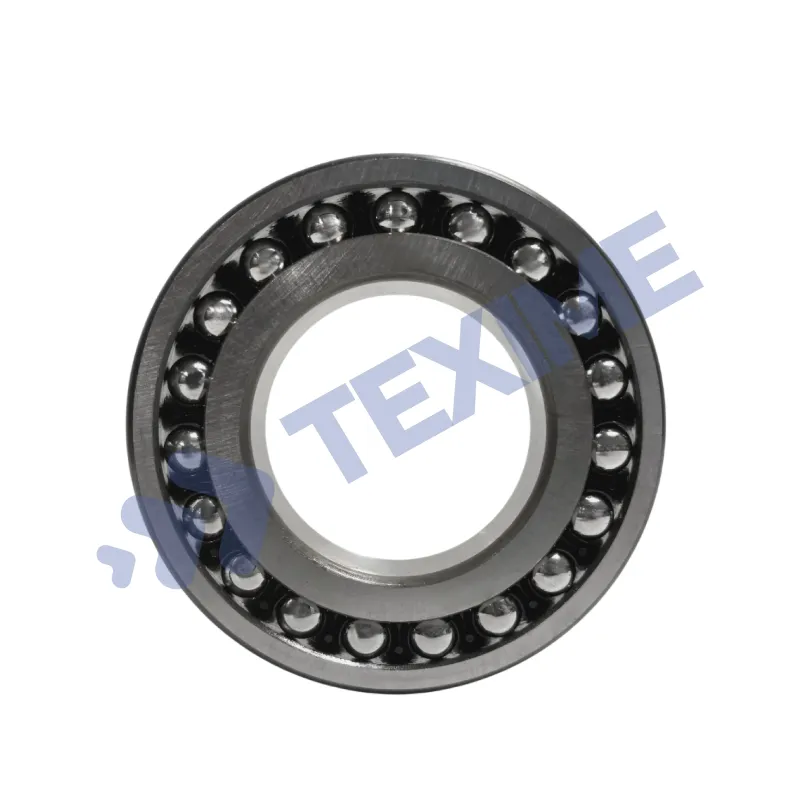

Self Aligning Ball Bearings 1304TV
FAG
The 1304TV bearing is a self-aligning ball bearing and features high quality performance. Order now on the Texime website!
Professionals?
Log in to benefit from your prices
€19.26
Tax included
Description
INDICATIVE DESCRIPTION :
What is a self-aligning ball bearing like the 1304TV?
Self-aligning ball bearings are composed of : two rows of balls, a common spherical raceway in the outer ring, two raceways in continuous grooves on the inner ring.
Another thing is that they are insensitive to angular misalignment of the shaft in relation to the housing, caused, for example, by bending of the shaft.
The self-aligning ball bearing 1304TV, to note:
- Withstands static and dynamic misalignment
- Excellent performance at high speeds
- Excellent performance under low load
- Low friction
The 1304TV bearing is a self-aligning ball bearing and features high quality performance. Order now on the Texime website!
