Data sheet
- Brand
- SKF
- Reference
- 2309EM
- Inside diameter (MM)
- 45
- Inside diameter (INCH)
- 1.772"
- Outside diameter (MM)
- 100
- Outside diameter (INCH)
- 3.937"
- Width (MM)
- 36
- Width (INCH)
- 1.417"
- Internal clearance
- Normal
- Cage type
- Brass cage
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84821090

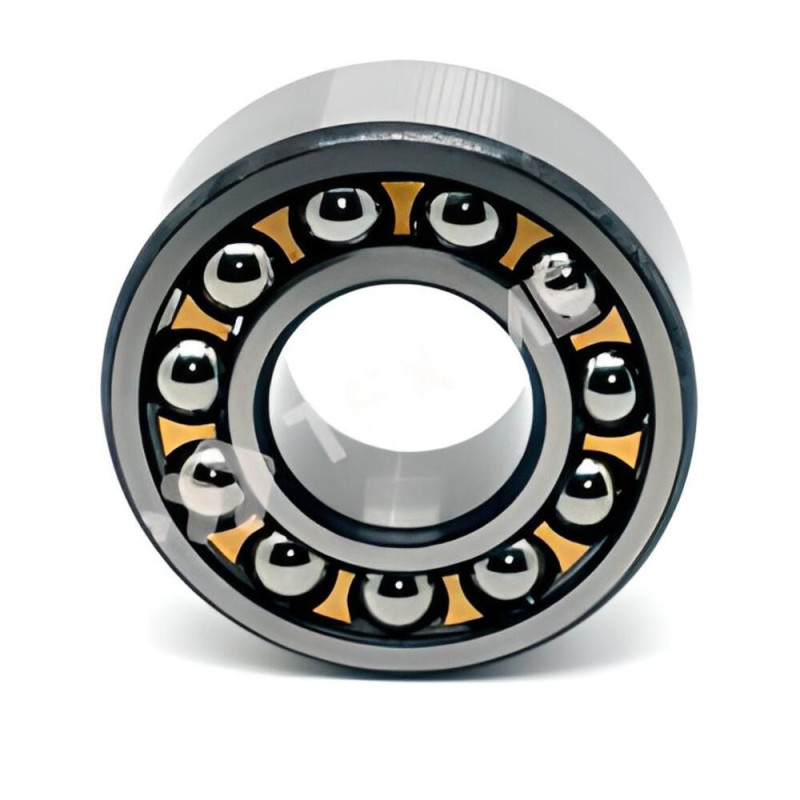

Self Aligning Ball Bearings 2309EM
SKF
Find all the characteristics of the 2309EM self-aligning ball bearing below and order on our Texime website or contact us!
Professionals?
Log in to benefit from your prices
€198.44
Tax included
Description
INDICATIVE DESCRIPTION
What are self-aligning ball bearings like the 2309EM?
Self-aligning ball bearing have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring.
They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
What to remember about self-aligning ball bearings like 2309EM?
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
Find all the characteristics of the 2309EM self-aligning ball bearing below and order on our Texime website or contact us!
