Data sheet
- Brand
- INA
- Reference
- NATR20-PPA
- Inside diameter (MM)
- 20
- Inside diameter (INCH)
- 0.787"
- Outside diameter (MM)
- 47
- Outside diameter (INCH)
- 1.850"
- Width (MM)
- 25
- Width (INCH)
- 0.984"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 84824000

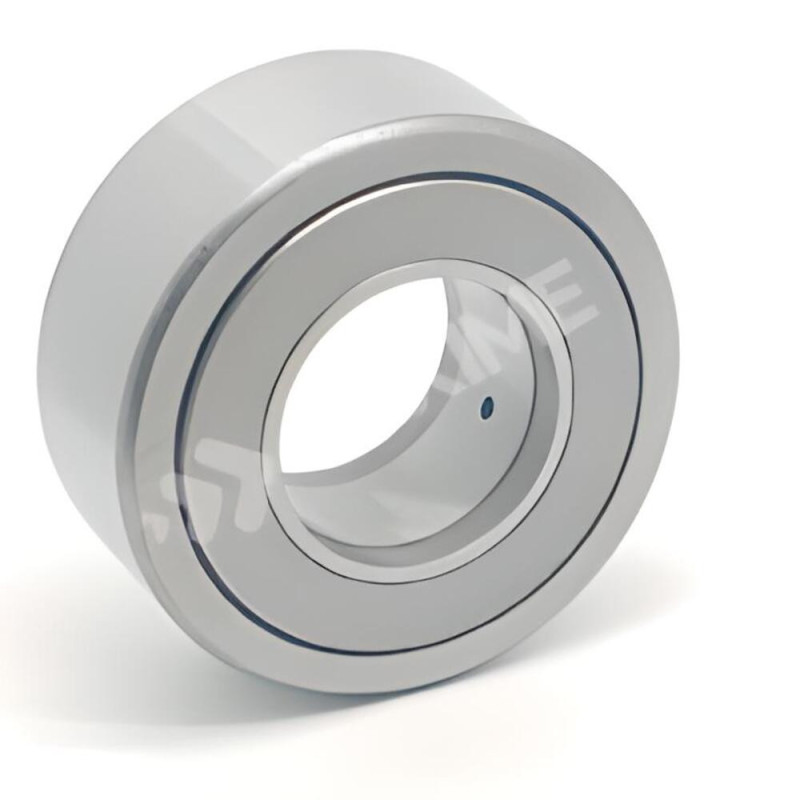

Yoke Type Track Rollers NATR20-PPA
INA
Yoke Type Track Rollers NATR20-PPA are high-quality bearings designed for demanding applications. This model is ideal for high-performance work environments. Discover the Yoke Type Track Rollers NATR20-PPA on the Texime website.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Yoke Type Track Rollers NATR20-PPA
NATR20-PPA : Support rollers (yoke-type track rollers) with flange rings and relubrication feature
Yoke Type Track Rollers NATR20-PPA : Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring.
They have a thick-walled outer ring with a crowned running surface. A narrow gap between the outer ring and the pressed-on flange rings forms a gap-type seal.
The inner ring contains a lubrication hole to facilitate relubrication.
Essential points of yoke type track rollers NATR20-PPA
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Ready to mount
- Sealed for increased reliability, with relubrication feature
