Data sheet
- Brand
- GENERIQUE
- Reference
- NUTR40X
- Inside diameter (MM)
- 40
- Inside diameter (INCH)
- 1.575"
- Outside diameter (MM)
- 80
- Outside diameter (INCH)
- 3.150"
- Width (MM)
- 30
- Width (INCH)
- 1.181"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84825000

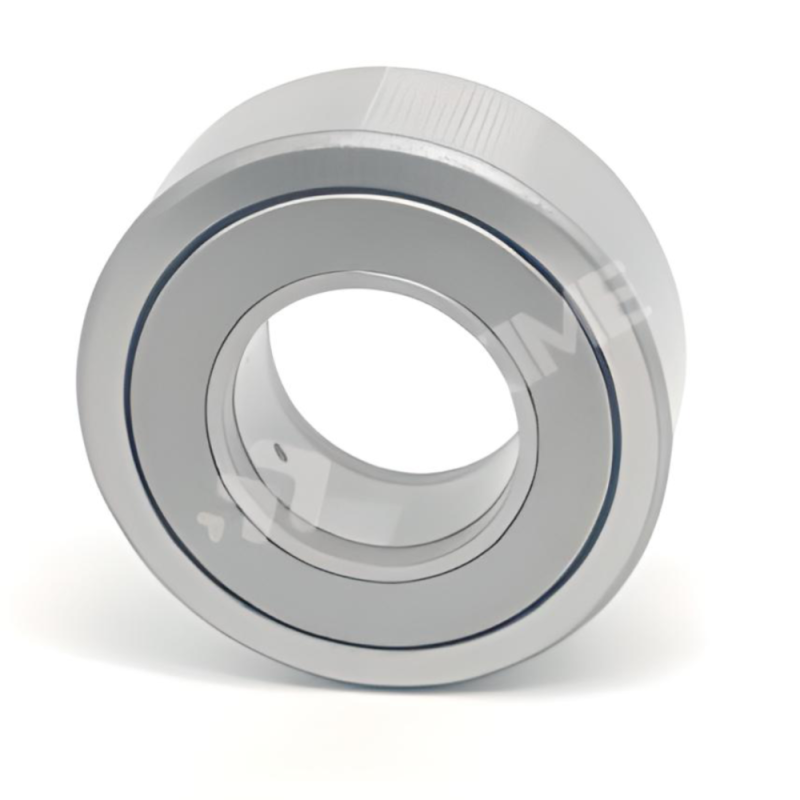

Yoke Type Track Rollers NUTR40X
GENERIQUE
Yoke Type Track Rollers NUTR40X, NUTR design, are high performance bearings ideal for your industrial applications. Find out more about their characteristics below.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Yoke Type Track Rollers NUTR40X, NUTR design
Support roller (yoke-type track roller) with flange rings, integral sealing and relubrication feature
Yoke Type Track Rollers NUTR40X : Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with a cylindrical running surface.
The inner ring contains a lubrication hole to facilitate relubrication.
Key features of Yoke Type Track Rollers NUTR40X
- High radial load carrying capacity
- Accommodate relatively heavy axial loads due to skew or tilting
- Long service life
- Ready to mount
- Sealed for increased reliability, with relubrication feature
Yoke Type Track Rollers NUTR40X, NUTR design, are high performance bearings ideal for your industrial applications. Find out more about their characteristics below.
