Data sheet
- Brand
- INA
- Reference
- NATR40PPA
- Inside diameter (MM)
- 40
- Inside diameter (INCH)
- 1.575"
- Outside diameter (MM)
- 80
- Outside diameter (INCH)
- 3.150"
- Width (MM)
- 32
- Width (INCH)
- 1.260"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 84824000

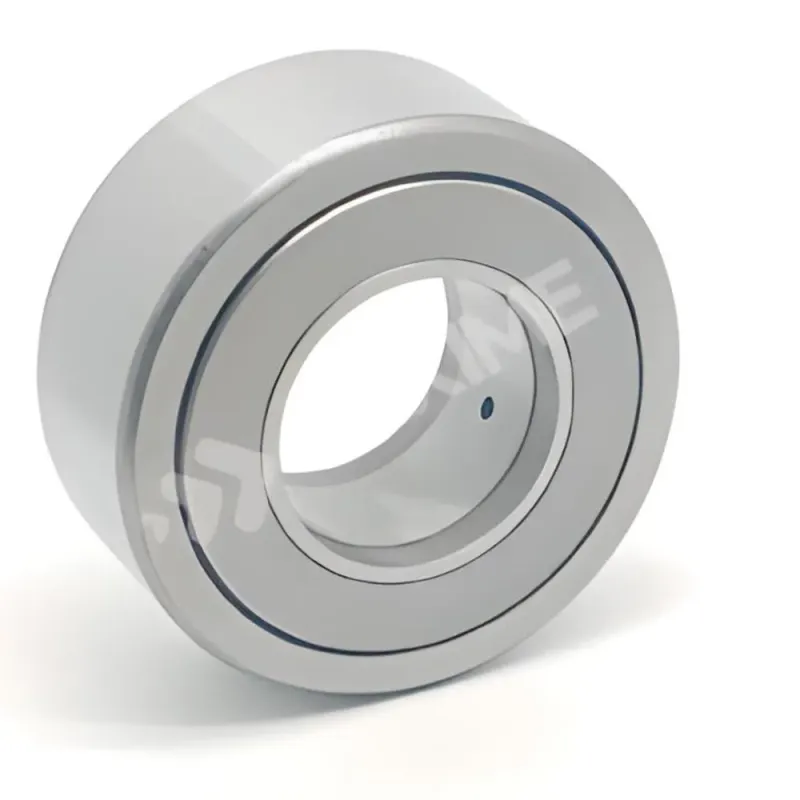

Yoke Type Track Rollers NATR40PPA
INA
Yoke Type Track Rollers NATR40PPA are high-quality bearings designed for demanding applications. This model is ideal for high-performance work environments. Discover the Yoke Type Track Rollers NATR40PPA on the Texime website.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
Yoke Type Track Rollers NATR40PPA
NATR40PPA : Support rollers (yoke-type track rollers) with flange rings and relubrication feature
Yoke Type Track Rollers NATR40PPA : Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring.
They have a thick-walled outer ring with a crowned running surface. A narrow gap between the outer ring and the pressed-on flange rings forms a gap-type seal.
The inner ring contains a lubrication hole to facilitate relubrication.
Essential points of yoke type track rollers NATR40PPA
- High radial load carrying capacity
- Accommodate axial loads due to skew or tilting
- Long service life
- Ready to mount
- Sealed for increased reliability, with relubrication feature
Yoke Type Track Rollers NATR40PPA are high-quality bearings designed for demanding applications. This model is ideal for high-performance work environments. Discover the Yoke Type Track Rollers NATR40PPA on the Texime website.
