Data sheet
- Brand
- FAG
- Reference
- AH3236
- Inside diameter (MM)
- 170
- Inside diameter (INCH)
- 6.693"
- Outside diameter (MM)
- 200
- Outside diameter (INCH)
- 7.874"
- Width (MM)
- 140
- Width (INCH)
- 5.512"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- *
- Sealing type
- *
- Customs code
- 84829900

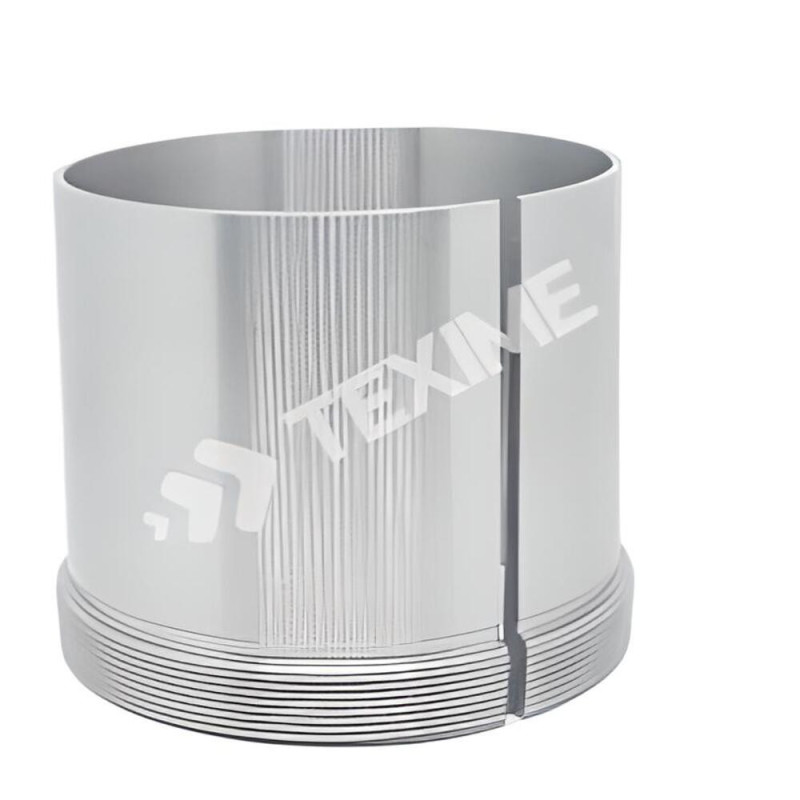

Adapter Sleeves And Accessories AH3236
FAG
Discover the AH3236 withdrawal sleeve and its key features below. Economical and for fast, easy assembly, these withdrawal and clamping sleeves will meet your needs.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
AH3236 withdrawal sleeve, basic model
AH3236 Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AH(X) sleeve is a basic design for mounting and dismounting.
The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately.
- Cost effective
- Quick and easy mounting
Order your AH3236 sleeves from Texime
Ideal for industrial maintenance professionals, repair shops and specialized technicians, these withdrawal sleeves, e.g. part no. AH3236, will enable you to work with precision and safety.
On Texime, you can find all the withdrawal sleeves, clamping sleeves and accessories offered for sale.
