Data sheet
- Brand
- NADELLA
- Reference
- LF1
- Inside diameter (MM)
- 12
- Inside diameter (INCH)
- 0.472"
- Outside diameter (MM)
- 28
- Outside diameter (INCH)
- 1.102"
- Width (MM)
- 15
- Width (INCH)
- 0.591"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Bore type
- Cylindrical
- Sealing type
- *
- Customs code
- 84828000

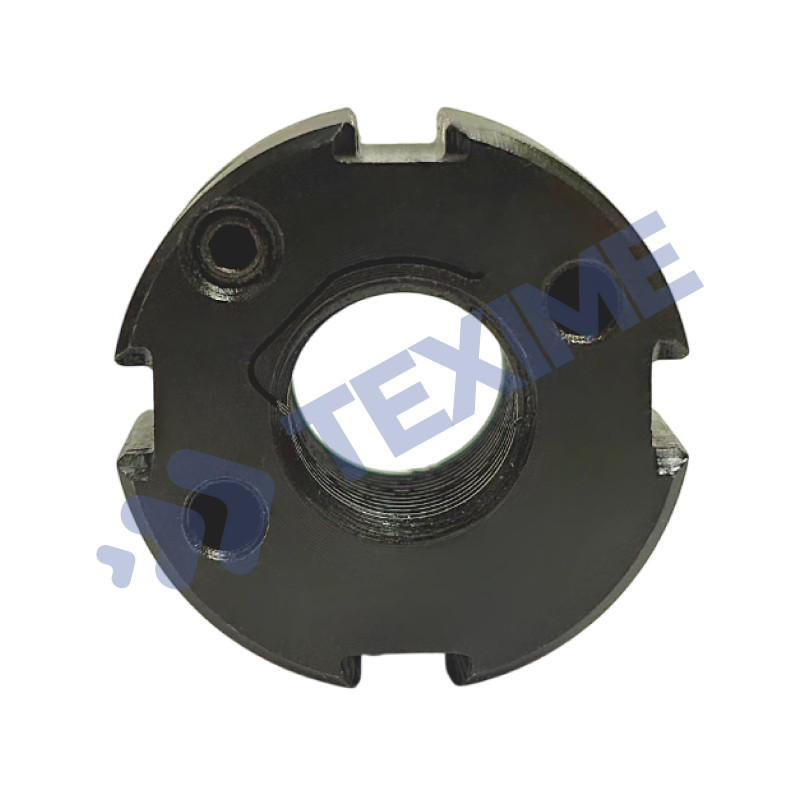

Adapter Sleeves And Accessories LF1
NADELLA
LF nuts are high performance. Or<strong>der from Texime, specialists in industrial equipment such as bearings, electric motors, geared motors and much more...
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
LF nuts: what you need to know
LF nuts are used wherever a strong radial clamping is not possible.
The axial strength activated by turning the front Hc grub screw is applied onto the threaded clamping spring through 90° wedges.
The resulting radial strength applies onto the clamping spring. The clamping pressure applied onto the threaded surface of the spring allows for a powerful locking.
The contact surface perpendicular to the threaded side allows the adjusting and securing of all types of bearings as well as other mechanical elements requiring very precise tolerances.
In addition to the notches, the holes located on the front side allow an easy positioning of the nut by mean of a spanner wrench.
