Data sheet
- Brand
- NADELLA
- Reference
- FG17 40EE
- Inside diameter (MM)
- 17
- Inside diameter (INCH)
- 0.669"
- Outside diameter (MM)
- 40
- Outside diameter (INCH)
- 1.575"
- Width (MM)
- 21
- Width (INCH)
- 0.827"
- Internal clearance
- Normal
- Cage type
- Steel cage or standard
- Sealing type
- Plastic seals on both sides
- Specificity
- Cylindrical outer ring
- Customs code
- 84821090

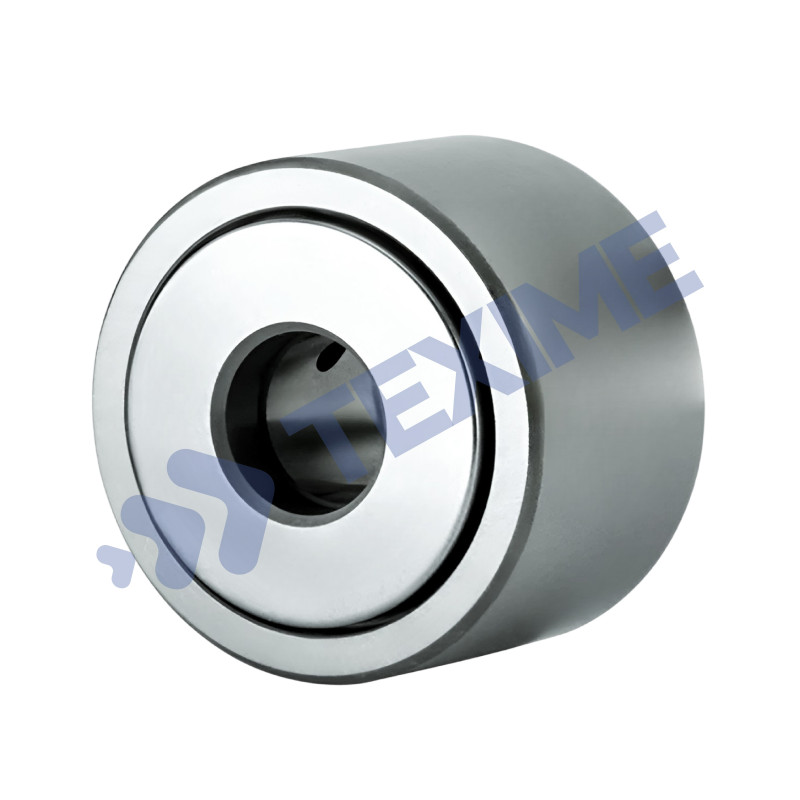

Cam followers FG17 40EE
NADELLA
These FG cam followers with inseparable outer and inner rings are high-quality, high-performance bearings, ideal for your applications. Discover all their features on Texime.
Professionals?
Log in to benefit from your prices
Description
INDICATIVE DESCRIPTION
FG cam follower with inseparable outer and inner rings
Cam follower with inseparable outer and inner rings.
Convex outer ring with plastic seals.
Nadella cam follower are designed to run directly on various tracks, such as cams, ramps or slides.
Outer ring without lubrication holes or grooves to prevent impurities from entering the bearing.
Slightly convex outer ring tolerates parallelism errors between roller and raceway.
Joined needles for maximum dynamic and static load capacity.
For your bearing needs, consult Texime.
